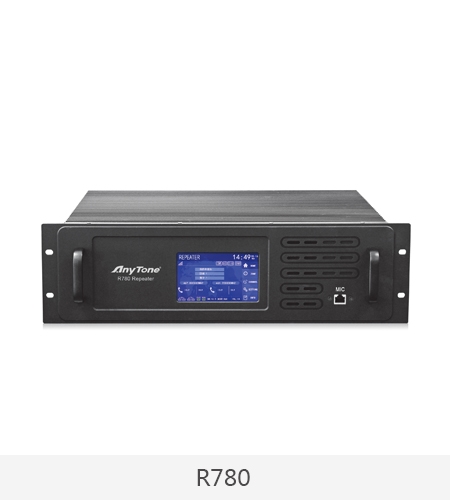

Digital Repeater


Name: Digital Repeater

Other side of radio

  • Features
  • Specification
  • Accessories
• 99 Memory Channels
• Colorful display
• Channel Spacing: 12.5KHz
• Smart Analog and Digital Signal Detection
• Output Power: 50W
• Duplex working mode
• Dimension: 480x395x120mm(LxHxW)
• IP Connect (optional)
Frequency UHF1: 400-470 MHz; UHF2: 450-520 MHz; UHF3: 350-400 MHz VHF:136-174 MH
Channel Space 6.25KHz / 12.5KHz / 25KHz
Sensitivity Analog mode 0.3μV(12dB SINAD)        0.22μV(typ.) (12dB SINAD)         0.4μV(20dB SINAD)
Sensitivity DMR 0.28μV(3%BER@12.5kHz)          0.3μV(3%BER@6.25kHz)
Adjacent Channel Selectivity Digital Sensitivity 62dB@6.25kHz       70dB@12.5kHz      75dB@25kHz
Inter-modulation 70dB
Blocking 95dB
spurious response rejection 90dB
Audio power output at ≤ 5% distort 2.0W / 8Ω
Conducted Spurious Emission <-57dBm
Frequency UHF1: 400-470 MHz; UHF2: 450-520 MHz; UHF3: 350-400 MHz VHF: 136-174 MHz
Power output 5~50W
Channel Space 6.25kHz / 12.5kHz / 25kHz
TX spurious -36dBm( ≤ 1 GHz)    -30dBm(>1 GHz)
FM modulation 16K0F3E@25kHz    11K0F3E@12.5kHz
4FSK Digital Modulation 12.5KHz(data)7K60FXD
6.25KHz(data+voice) 4K00F1W
Audio Distortion ≤ 3%
Audio Response +1 ~ -3dB
FM Hum&Noise 40dB @12.5KHz      45dB @25KHz
Digital FSK Error <1.5%
Adjacent Channel Power 60dB @12.5KHz     70dB @25KHz
TX Spurious Emission -36dBm( ≤ 1 GHz)    -30dBm (>1 GHz)
Frequency UHF1: 400-470 MHz; UHF2: 450-520 MHz; UHF3: 350-400 MHz VHF: 136-174 MHz
Channel 600
Zone 32( maximum 32channels in one zone)
RF output Power 5-50W
Size(LWH) 420*483*132.5mm
Weight 15Kg
Input Voltage AC 220V
Input Voltage DC 13.6V±15%
Current(Standby) <800mA
Current(TX) <11A
Current(RX) <1900mA
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Digital Vocoder AMBE+2
RF Connection Tx(N)、Rx(N)
IP controller CPU Freescale i.mx6Q 4Core CORTEX A9
Flash Memory 8G
SD Micro SD,Max 128G
Display 24bit_RGB
USB Mini USB2.0 (OTG)
Wired network 10/100/1000 Mbps Ethernet
Supported System Anytone intelligent trunking communication system, Anytone intelligent regular IP interconnection system, Normal digital/analog system.
*The above specification are based on ETSI standard test results. Availability varies according to national laws and regulations. Unless particular clarification, all the display specifications are typical specifications and may change at any time without notice.
